TBD8552
Hilmo
TBD8552
• Voltage: DC12 , DC24V, DC12-24V optional .
• Current : 6.7A max (1200mm DC13.8V) 7.8A max (1440mm DC13.8V)
9A Max (1680mm DC13.8V) 5.4A Max (960mm DC13.8V)
• Light source : 1W Led, 3W optional
• Color of lens & led: red, blue,amber and clear available
• Length :1200m,960mm,1440mm,168mm optional

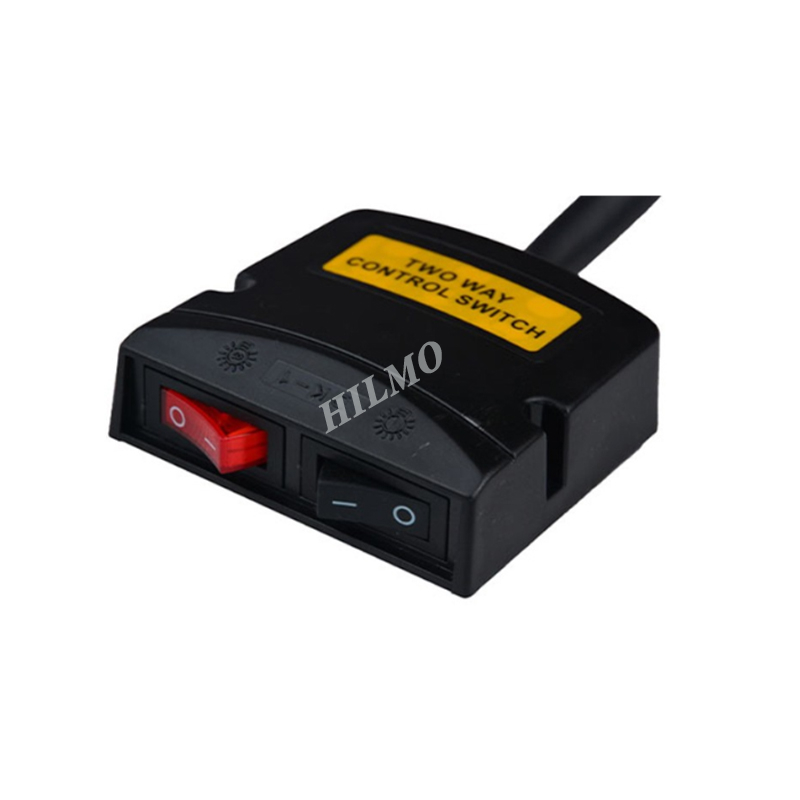

• Function:2- button switch box with on/off and 18 kind built-in memorial flash patterns ,
or 12- button controller with power on/off, front light, rear light, take down ,alley light, traffic advisor (left,right,middle) , 18 built-in memorial flash patterns, dim brightness, cruise and AUX.
• Power calbe: 4.5M jacket cable and 2.5M power supply wire
• built-in speaker inside optional
• Install: Hook fixing , bolt fixing optional,
• Material : PC lens cover, Aluminum exclusion platform ,plastic mount bracket
• Life span : 100000 hours Flash frequency : 1-3Hz
• Size & weight :1200 (L)*220(W)*50(H) mm 7kg
• Package:124cm*29cm*18.5cm/ctn 10.8kg/ctn 1unit/ctn
• Warranty: Two year warranty
• waterproof :IP66
• Temperature: -40℃- +65℃
• Certification: ECE R65 R10 SAE approval
• Voltage: DC12 , DC24V, DC12-24V optional .
• Current : 6.7A max (1200mm DC13.8V) 7.8A max (1440mm DC13.8V)
9A Max (1680mm DC13.8V) 5.4A Max (960mm DC13.8V)
• Light source : 1W Led, 3W optional
• Color of lens & led: red, blue,amber and clear available
• Length :1200m,960mm,1440mm,168mm optional
• Function:2- button switch box with on/off and 18 kind built-in memorial flash patterns ,
or 12- button controller with power on/off, front light, rear light, take down ,alley light, traffic advisor (left,right,middle) , 18 built-in memorial flash patterns, dim brightness, cruise and AUX.
• Power calbe: 4.5M jacket cable and 2.5M power supply wire
• built-in speaker inside optional
• Install: Hook fixing , bolt fixing optional,
• Material : PC lens cover, Aluminum exclusion platform ,plastic mount bracket
• Life span : 100000 hours Flash frequency : 1-3Hz
• Size & weight :1200 (L)*220(W)*50(H) mm 7kg
• Package:124cm*29cm*18.5cm/ctn 10.8kg/ctn 1unit/ctn
• Warranty: Two year warranty
• waterproof :IP66
• Temperature: -40℃- +65℃
• Certification: ECE R65 R10 SAE approval

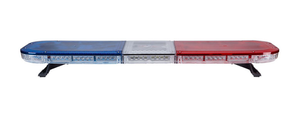

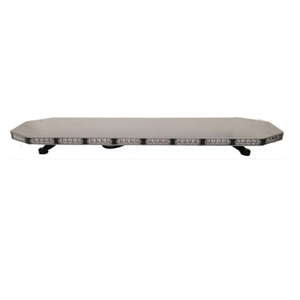

• The ligthbar is widely used by public security, police, ambulance , fire services, engineering, army.
• Newly streamlined and ultra-thin appearance design, elegant and generous.
• Due to the widespread use of imported PC material, high-brightness LED,high stability chips,
this product features with high brightness, low-power consumption and long life, etc. .
• Multifunction system and 360-degree lighting is suit all your needs and situations.
• The ligthbar is widely used by public security, police, ambulance , fire services, engineering, army.
• Newly streamlined and ultra-thin appearance design, elegant and generous.
• Due to the widespread use of imported PC material, high-brightness LED,high stability chips,
this product features with high brightness, low-power consumption and long life, etc. .
• Multifunction system and 360-degree lighting is suit all your needs and situations.
Packing weight:12KG Packing size:124*29*18.5cm Packing Qty:1pc
Packing weight:12KG Packing size:124*29*18.5cm Packing Qty:1pc
