Truck warning led Lightbar

• Voltage: DC12V, DC24V, DC12-24V optional .
• Light source : 1W Led, 3W optional
• Color of lens & led: red, blue,amber and clear available
  • TBD9652E

  • Hilmo

  • TBD9652E

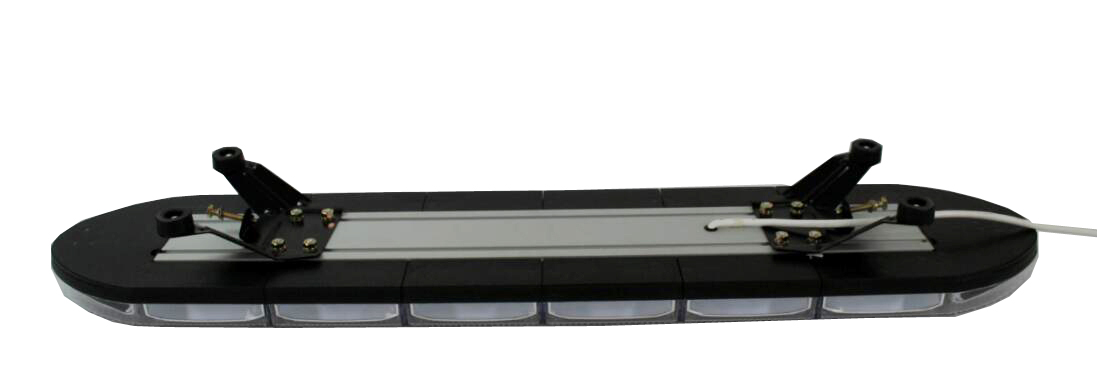

Hilmo LED Warning Strobe Lightbar TBD9652E

• Voltage: DC12V, DC24V,   DC12-24V optional .

• Current : 6.7A max (1190mm DC13.8V) 7.8A max (1490mm DC13.8V,)

                9A Max (1790mm DC13.8V,)     5.4A Max (890mm DC13.8V)

• Light source : 1W Led, 3W optional

•  Color of lens & led: red, blue,amber and clear available

•  Length :1190mm,  890mm,1490mm,1790mm available

•  Function:2- button switch box with on/off and 18 kind built-in memorial    flash patterns  ,

                or 12- button controller with power on/off, front light, rear light, take down ,alley light, traffic advisor                       (left,right,middle) , 18 built-in  memorial flash patterns, dim brightness, cruise  and AUX.

• Power calbe: 4.5M jacket cable and  2.5M power supply wire

•  built-in speaker inside  optional

• Install: Hook fixing , bolt fixing optional,

• Material : PC lens , Aluminum exclusion platform ,stainless steel mount bracket

• Life span : 100000 hours  Flash frequency : 1-3Hz

• Size & weight  :1190 (L)*240(W)*64.5(H) mm   8.5kg

• Package:125cm*29cm*18cm/carton,  12.3kg  1 unit/ctn

• Warranty: Two year warranty

• waterproof :IP66

• Temperature: -40℃- +65℃

• Certification: ECE R65 R10 SAE approval

  Button function

• widely used by  public security, ambulance ,  fire  ,traffic , engineering and army

•  low- profile   appearance design, elegant   and generous.  Big power LED, features with high brightness, low-power consumption ,Advance optical design make more brighter

• Multifunction system such as widely voltage, multi-kind flash pattern, separated control of different function light, day & night brightness, compatible with multiple install is suit  for all your needs and situations.

•  Famous brand PC material with anti-UV surface treatment   , high stability chips, features with long life

• Anti-Electromagnetic interference design ,which don’t effect vehicle operation, All gaps is sealed with rubber strip, make goods water-proof

• Spare part connected with plug & play for easy operation and maintenance


Package:125cm*29cm*18cm/carton,  12.3kg  1 unit/ctn

Lightbar size:                 Packing size:

59cm*24cm*9.6cm        65cm*29cm*18cm

74cm*24cm*9.6cm        80cm*29cm*18cm

89cm*24cm*9.6cm        95cm*29cm*18cm

119cm*24cm*9.6cm      125cm*29cm*18cm

134cm*24cm*9.6cm      140cm*29cm*18cm

149cm*24cm*9.6cm      155cm*29cm*18cm

164cm*24cm*9.6cm      170cm*29cm*18cm

179cm*24cm*9.6cm       185cm*29cm*18cm

194cm*24cm*9.6cm       200cm*29cm*18cm

209cm*24cm*9.6cm       214cm*29cm*18cm



HILMO Security is one of the biggest manufactory of warning lightbar ,siren and speaker in China which was found in 1998. With 13 branch office all over China, reliable quality and excellent after-sales service make HILMO brand gain very good reputation in China!
