Mini lightbar TBD1652-06

• Voltage: DC12-24V optional .
• Current : 3A max (DC13.8V)
• Light source : 1W Led, 3W optional
• Color of lens & led: red, blue,amber and clear available
  • TBD1652-06

  • Hilmo

  • TBD1652-06

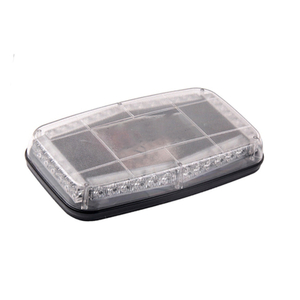

Mini Lightbar TBD1652-06

• Voltage:  DC12-24V optional .

• Current : 3A max (DC13.8V)

• Light source : 1W Led, 3W optional

•  Color of lens & led: red, blue,amber and clear available

•  Length :587mm

•  Function: Cigarette plug with two buttons,one is on/off, the other is for 12  kinds built-in memorial  flash patterns,or 3-wire lead with positive pole,negative pole and trigger

• Power calbe: 3M jacket cable with cigarette plug  ,1.5M cable lead optional

• Install: Magnetic fixing or  bolt fixing

• Material : PC lens cover, Aluminum exclusion platform

• Size & weight  :587(L)*300(W)*50(H) mm    3.5kg

• Package:64cm*36cm*18cm/carton  4.5kg/carton  1unit/carton

• Warranty: Two year warranty

• waterproof :IP66

• Temperature: -40℃- +65℃

• Certification: ECE R65 R10 SAE approval

• widely used by  public security, ambulance ,  fire  ,traffic , engineering and army

•  low- profile   appearance design, elegant   and generous.  Big power LED, features with high brightness, low-power consumption ,Advance optical design make more brighter

• Multifunction system such as widely voltage, multi-kind flash pattern,  day & night brightness, compatible with multiple install is suit  for all your needs and situations.

•  Famous brand PC material with anti-UV surface treatment   , high stability chips, features with long life

• Anti-Electromagnetic interference design ,which don’t effect vehicle operation, All gaps is sealed with rubber strip, make goods water-proof

• Spare part connected with plug & play for easy operation and maintenance


Packing weight:4.5KG  Packing size:64*36*18cm  Packing Qty:1pc
