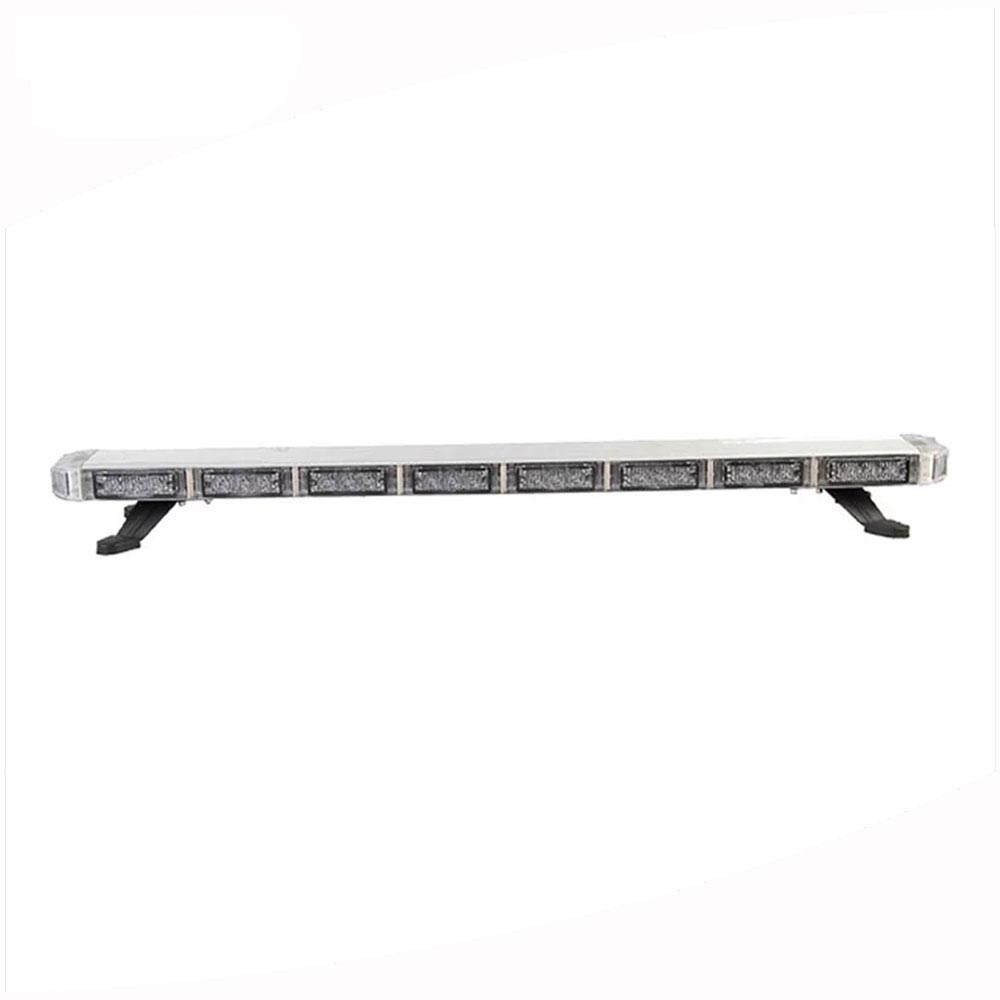

Truck led warning amber lightbar

• Voltage: DC12 , DC24V, DC12-24V optional .
• Light source : 1W led , 3W Led optional
• Color of lens & led: red, blue,amber and clear available
  • TBD9052-10


  • TBD9052-10

HILMO LED Lightbar Wholesale Supplier TBD9052

• Voltage: DC12 , DC24V,   DC12-24V optional .

• Current : 5.8A max (1030mm DC13.8V)  7A max (1270mm DC13.8V)

                8.2A Max (1510mm DC13.8V)

• Light source : 1W led  , 3W Led optional

•  Color of lens & led: red, blue,amber and clear available

•  Length :1030mm,1270mm,1510mm  available

•  Function: 5 switch box with power on/off ,8 kind built-in memorial flash patterns. from left to right, from right to     left,from middel to both side

• Power calbe: 4.5M jacket cable and  2.5M power supply wire

• Install: Hook fixing , bolt fixing optional,

• Material : PC lens cover, Aluminum exclusion platform ,stainless steel   mount bracket

• Life span : 100000 hours  Flash frequency : 1-3Hz

• Size & weight  :1055(L)*120(W)*46(H) mm      5.2kg

• Package:130.5*29.5*22.5/ctn    19.5KG/ctn   3 units/ctn

• Warranty: Two year warranty

• waterproof :IP66

• Temperature: -40℃- +65℃

• Certification: ECE R65 R10 SAE approval

  • 9052

• widely used by  public security, ambulance ,  fire  ,traffic , engineering and army

•  low- profile   appearance design, elegant   and generous.  Big power LED, features with high brightness, low-power consumption ,Advance optical design make more brighter

• Multifunction system such as widely voltage, multi-kind flash pattern, separated control of different function light, day & night brightness, compatible with multiple install is suit  for all your needs and situations.

•  Famous brand PC material with anti-UV surface treatment   , high stability chips, features with long life

• Anti-Electromagnetic interference design ,which don’t effect vehicle operation, All gaps is sealed with rubber strip, make goods water-proof

• Spare part connected with plug & play for easy operation and maintenance


• Package:130.5*29.5*22.5/ctn    19.5KG/ctn   3 units/ctn
