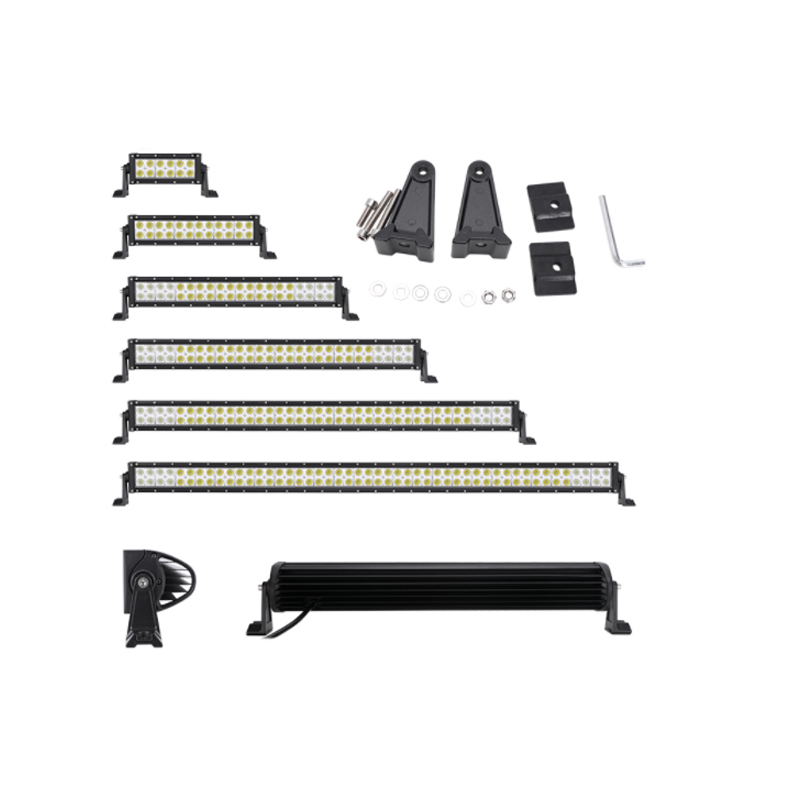

Led offroad light bar DWL01-06

1.DC 10-30V
2.120W, 40*3W LEDs
  • DWL01-06

  • Hilmo

  • DWL01-06

LED offroad Light Bar DWL01-06

• Operating Voltage: DC9-32V

• Current:10A/DC12V,5A/DC24V( 21.5")

• Light source & power: 120W(40*3W) LED,36W,72W,180W,240W ,288W,300W optional

 Length:21.5”,and 7.5”13.5”31.5”41.5” 50”52” optional

• Beam: Combo, Flood (60 degree), spot (30 degee) optional

• Material: diecast aluminum housing ,PC lens ,aluminum alloy mounting bracket

• Illumination: 10000LM (21.5") (3000-18000LM for different light)

• Color Temperature: 6500K

• Life   time : 50000  hours  above

• Size & weight:  546(L)*111(W)*86(T)mm     3.65kg

• Packing : 72*48*37cm/ctn    14KG/ctn, 4pcs/ctn

• Water proof: IP67

•Temperature: -40℃ - +80℃

• Warranty  : one year

• Certification: CE  EMARK ROSH


• available in the auxiliary lamp for  truck, Offroad, 4x4  and so on

• new design make more brighter,more far

•  high-quality diecast aluminum housing; advance head sink design,make long life

• Waterproof, Dust-proof, Rust-proof, Anticorruption ,It can be used in rain or bad environment. EMC design to prevent effect vehicle operation,

•  Easy to wire up, install and adjust,play and plug



Packing weight:4KG  Packing size:72*48*37cm  Packing Qty:4pcs



HILMO Security is one of the biggest manufactory of warning lightbar ,siren and speaker in China which was found in 1998. With 13 branch office all over China, reliable quality and excellent after-sales service make HILMO brand gain very good reputation in China!
