Tail Light WD103

• Voltage: DC12V/24V
• Current: 0.6A (DC12V)
• Light source : 46 SMD led
  • WD103

  • Hilmo

  • WD103

LED truck tail light WD103

• Voltage: DC12V/24V

• Current:  0.6A (DC12V)

• Light source : 46 SMD led

• Color   : red  amber ,white combination

• Function: 5-wire  , stop/tail/trun/reverse

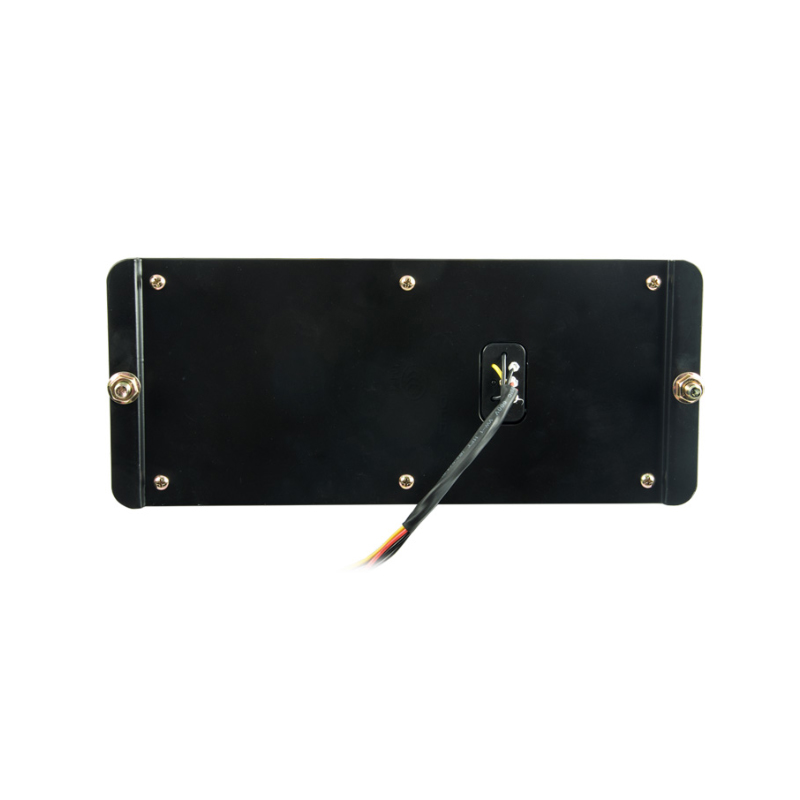

• Install: black PVC Grommet  mount

• Material: PC lens and ABS housing

• Life span: 10000 hours

• Size & weight: : 323*136*45mm

• Warranty:  one year

• Water proof : IP67

• Certification  : DOT SAE

• This product widely used by Truck ,Trailer and other speical vehicle

•SMD LEDs, super bright and long life span  Engineered lens optics plus a reflector over PCB making the lamp bright and shiny for compliance

• PC lens and housing ultrasonically welded together to ensure a permanent and weather proof seal


Packing weight:19kgs,Packing size:47*36*31cm,packing quantity:20pcs
